INFRA STRUCTURE
All products designed and manufactured to the highest standards with the latest technology. Our wealth of technical knowledge enables us to supply products that match OEM criteria.
- Highest quality materials and methods are used ensuring maximum strength and durability.
- Order processing, materials purchasing, manufacture, assembly and dispatch are linked to ensure that deliveries meet customer's requirements.
- Finished products are tested for alignment, quality and where applicable, hydraulic function
| Handling | Capacity | Type | Nos |
|---|---|---|---|

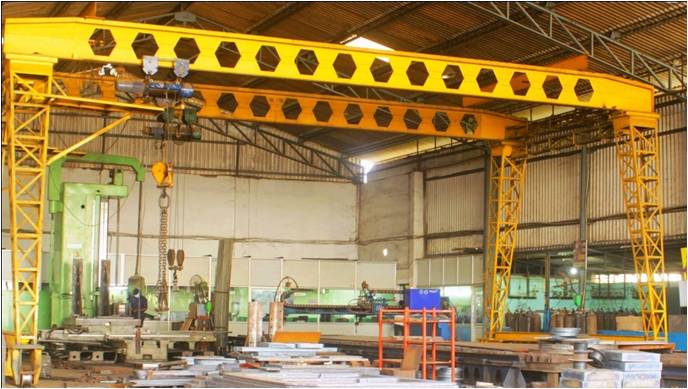

| 10 Ton Capacity Crane | Gantry | 2 | |
| 5 Ton Capacity Crane | Gantry | 2 | |
| 10 Ton Capacity Crane | EOT | 1 |

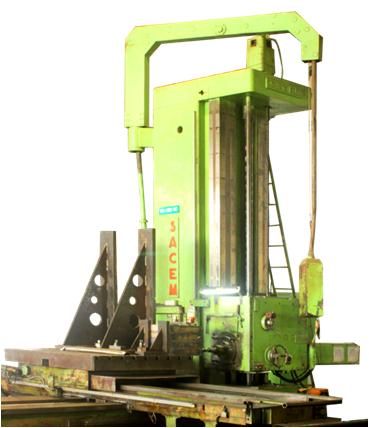

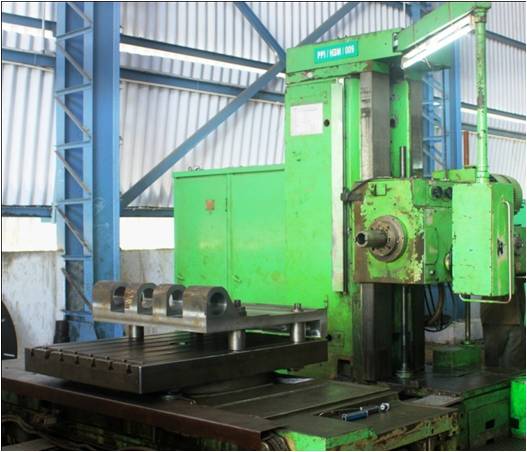

| SACEM 130 HBM | |
|---|---|
| Spindle Size | 129.8 mm |
| X-Horiz Tvl of Col | 3,001 mm |
| Y-Vert Tvl of Head | 2,500 mm |
| Z-Travel | 2,500 mm |
| Rot. Table W | 1,600 mm |
| Rot. Table L | 1,400 mm |
| Z-Spdl Tvl | 900 mm |

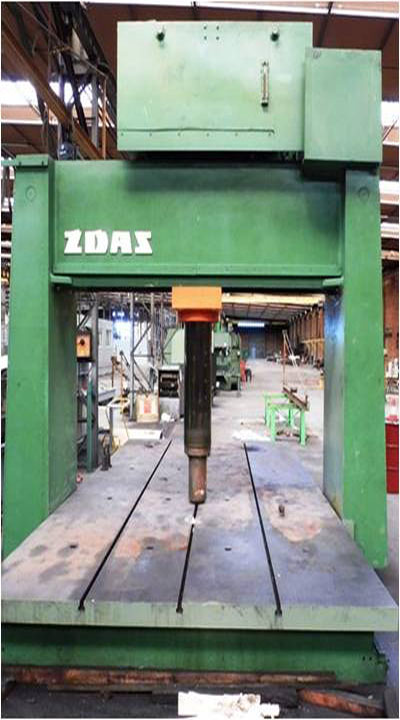

| ZDAS Straightening press | |
|---|---|
| Capacity | 400 ton |
| Stroke | 1000 mm |
| Drawningspeed | 42 mm/sec |
| Workingspeed | 1 mm/sec |
| Returningspeed | 40 mm/sec |
| Passage between uprights | 3100 mm |
| Max distance between table - ram | 1400 mm |
| Dimensions of the table | 3100 x 6000 mm |
| Tableheight fixed - sliding | fixed |
| Length | 6000 mm |
| Depth | 4160 mm |
| Height | 4520 mm |
| HMT Pegard AZ11 | |
|---|---|
| Spindle | 110 mm dia |
| Longitudinal Tarvel | 1370 mm |
| Cross Travel | 1600 mm |
| Vertical Travel | 1170mm |
| Table | 1200 x 900 mm |

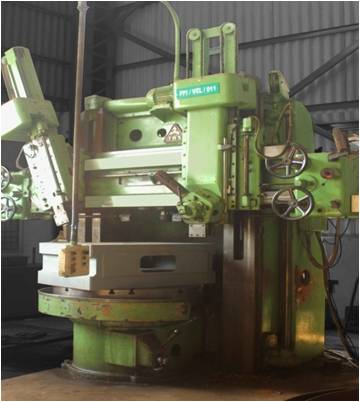

| V.T.L Machines | |
|---|---|
| Manufacturer | TOS |
| Chuck Diameter | 1.2mtr |
| Swing | 1.4mtr |
| Center Height | 1.2mtr |
| D.R.O | Attached |
| Threading Attachment | Available |

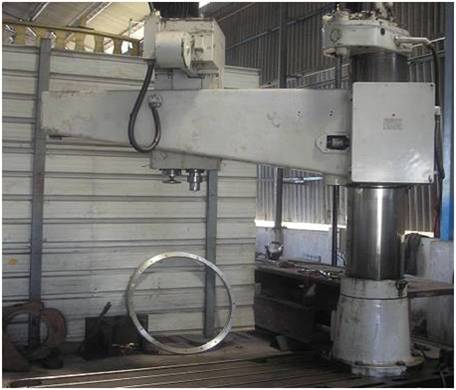

| Radial Drilling Machines | |
|---|---|
| Manufacturer | (1) Hindustan RM63 |
| Drill Capacity | MT4 |
| Centre Height | 1300mm, 1500mm, 1500mm |
Contract Manufacturing Services
Engineering Services
Precision profiles India offer a range of fabrication and engineering services to many industries such as aerospace, defense, security, marine, oil & gas and rail. Our manufacturing area alone spans 25,000 square feet with crane age facilities of up to 20 ton capacity.

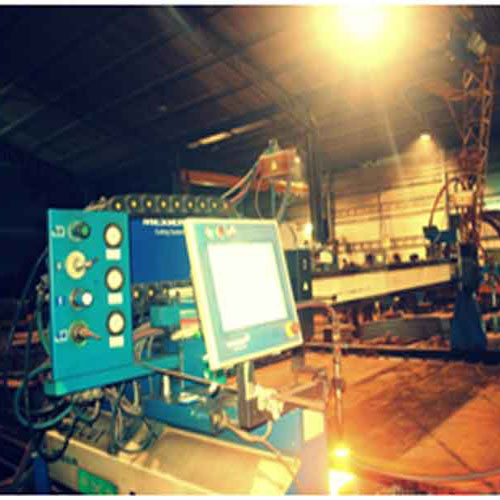

CNC Gas Profiling
PPI provides a variety of CNC profile cutting services. Our gas CNC cutting machines can profile mild steel of thicknesses up to 300mm and our maximum cutting capacity is 8m in length by 14m in width.
PPI prides itself on its rapid turn-around speeds; in many cases within 24 hours of an order being placed. This unique service, unrivalled by our other competitors, allows you to get your jobs done quickly and efficiently causing minimum disruption to your processes.
Our gas CNC cutting machines provide high-quality, heavy-duty CNC profile cutting to suit your steel profiling needs.
Large or small, PPI can meet your heavy-duty steel profiling requirements.

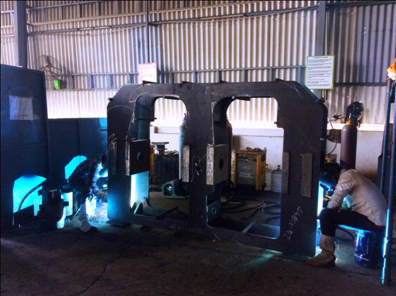

Welding & Fabrication
Precision profiles India provides 10 years of experience in welding with numerous TIG sets, MIG sets, MMA sets and GAS sets, as well as submerge arc welding machines, and punching.
We offer small to large fabrications in stainless steel, aluminum and mild steel as well as coded welding, carbon steel fabrication, production line fabrication, repetitive line jig-work, powder coating, shot blasting, airless & wet paint spray, metal polishing.
We specialize in welding/fabrication as well as heavy engineering for complex parts such as pressure vessels, Wind turbines, and structural metalwork to name but a few.
CNC Machining
CNC Turning, CNC Milling, and Precision Engineering services
Precision profiles India manufactures precision machined components, light fabrications and assemblies to customer specifications utilizing the latest in CNC machining technology. We have over 15 CNC Machines, including one large 5 axis Mill Turn Centre with Capacity to machine components of up to 920mm dia and 4m length. Following recent investments, PPI Machining also benefits from 2 large milling machines with bed size of 11.5m x 1.5m x 2.5m.
To allow further expansion, PPI Machining relocated to a purpose built 25,000sq ft machine shop in Chennai.
Finishing
Wet Painting & Shot Blasting
PPI offers shot blasting and wet painting of components. Our wet painting service works in-line with this, meaning energy costs and lead times are reduced.
